Small-sized membrane filter
A compact MF filter which uses a cartridge type high performance membrane filter module.
Filtration and chemical washing operations have been made into separate units.
Features
- It uses a cartridge type high performance membrane filter module.
- Filtration and chemical washing operations have been made into separate units.
- It has achieved a significant energy-saving operation through the adoption of a dead-end filtration method.
- Using our MF membrane module cleaning service makes both a cleaning unit at the installation site and processing of cleaning wastewater unnecessary.

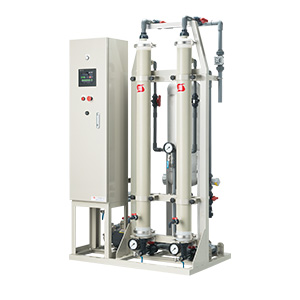

Filter unit
Filter element cleaning unit
Applications
- Heavy metal wastewater treatment
- Pre-treatment filter for RO equipment
- Recovery of valuable metal sludge through segregated wastewater treatment
- High-clarity filtration of processing liquids in chemical plants, etc
Specifications
Filter Unit
| Model | W3MFD－012 |
|---|---|
| Treatment capacity | - 1m3/h |
| Dimensions [W×D×H] | 1,050×700×1,870mm |
| Operating weight | 265kg |
| Power supply | AC200V 1.2kW (Not including air compressor power supply for backwashing and instrumentation) |
| Number of MF modules | 2 |
| Material of element | PE |
| Material of housing | PP |
* Filtration capacity will vary depending on the application and water quality conditions.
* Air for backwashing and instrumentation is required.
Specifications
Filter element cleaning unit
| Model | W3MFDW-012 |
|---|---|
| Number of MF modules at one time | 2 |
| Included chemical tanks | 2 tanks (Acid, Alkali) |
| Dimensions [W×D×H] | 1,350×750×1,955mm (Excluding chemical tanks) |
| Operating weight | 365kg |
| Power supply | AC200V 0.5kW (Not including air compressor power supply for backwashing and instrumentation) |
* Please use the included chemical tanks for chemical cleaning.
* Air for backwashing and instrumentation is required.
Dimensions
