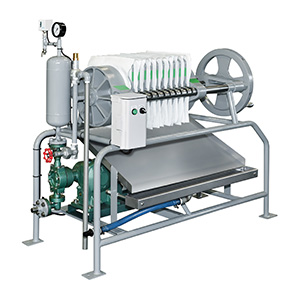

FILTER PRESS Filter press
A filter press treats concentrated slurry and recovers a clear liquid and cake by filtering, pressing, dehydrating and cake washing. Resource-saving design helps protect and preserve the environment.
Features
- Easy cake stripping, thanks to a special mesh on the filtering surface.
- Greater processing capacity, thanks to having a thicker cake compared to other companies' products.
- Can be operated with only a small tightening force, thanks to a special sealing design between the filter plates.
- Compact installation space for its treatment capacity compared to conventional products.
- Robust and highly durable with easy maintenance, thanks to stable quality and mass-production design accomplished by streamlined, high performance processing technology.
Applications
- Solid-liquid separation of plating slurry
- Solid-liquid separation such as brewing, food, ceramics, and smelting
- Solid-liquid separation in laboratory wastewater treatment
Technical specifications
| Model | W3YD-8F | W3YD-15F | W3YD-20F |
|---|---|---|---|
| Filter area | 0.8m2 | 1.5m2 | 2.0m2 |
| Total volume of cake | 12L | 23L | 32L |
| Dimensions [W×D×H] | 1,090×625×1,300mm | 1,415×625×1,300mm | 1,680×625×1,300mm |
| Weight | 360kg | 410kg | 490kg |
| Model | W3YD-30F | W3YD-40F | W3YD-60F |
|---|---|---|---|
| Filter area | 3.0m2 | 4.0m2 | 6.0m2 |
| Total volume of cake | 45L | 60L | 90L |
| Dimensions [W×D×H] | 2,055×625×1,300mm | 1,620×800×1,300mm | 1,620×800×1,300mm |
| Weight | 600kg | 800kg | 1,100kg |
