Filter Media : Cartridge system
Wind filter cartridge media that achieves high filtration accuracy and long life ECONOWIND® HQ
- Long-life
- High clarity
- General purpose product
Model Identification
Features
This is a wound filter cartridge filter medium which maintains high filtration clarity and also realizes long life. Since the filtration clarity (particle capture rate) at the start of use is high, filtrate with high clarity can be obtained from the start of filtration. The materials tor the filler medium can be selected depending on the type of chemical solutions: high chemical resistant and highly versatile polypropylene, acrylic fiber for oxidizing chemicals, or cotton for solvents and oils.
Applications
- Plating solutions, acid/alkaline solutions, chemicals
- Industrial water, rinse water, wastewater
- Griding fluid, paint, solvent, cutting oil
- Water for bath and pool
- For pre-filtration of ion exchange tower and RO equipment
Flow volume - Pressure loss
Specifications
| Materials - Filter media | PP | Acrylic resin | Cotton | |
|---|---|---|---|---|
| Materials - Core | PP | SUS | PP | SUS |
| Materials - End cap | None | None | None | |
| Nominal filtration clarity [μm] | 0.5 / 1 / 5 / 10 / 20 / 50 / 100 | 1 / 5 / 10 / 20 / 50 / 100 | ||
| Dimensions - Length [mm] | 250 / 254 / 500 / 508 / 750 / 762 | |||
| Dimensions - Inside diameter [mm] |
28 | 30 | 28 | 30 |
| Dimensions - Outside diameter [mm] |
63 | 63 | 63 | |
| Temperature | under 80°C | under 80°C | under 90°C | |
| Max. Pressure [MPa] | 0.5 (30°C) | 0.5 (30°C) | 0.5 (30°C) | |
Realizing high filtration clarity and low cost due to melt blown filter system Melt blown filter cartridge MB
- Effluents reduced
- High clarity
- General purpose product
Model Identification
Features
This is a low-cost melt blown type cartridge filter medium developed to be used to filter solutions which need high clarity without suspended particles. Polypropylene microfiber is self-heat fused, preventing falling of fibers from the filter medium. The filter medium is all made of polypropylene and excellent in chemical resistance with very small amount of effluents or strips, and can be applied to various solution filtering fields.
Applications
- Plating solutions, acid/alkaline solutions, chemicals
- Industrial water, rinse water, wastewater
- Griding fluid, paint, solvent, cutting oil
- Water for bath and pool
Flow volume - Pressure loss
Specifications
| Materials - Filter media | PP |
|---|---|
| Materials - Core | PP |
| Materials - End cap | None |
| Nominal filtration clarity [μm] | 1 / 5 / 10 |
| Dimensions - Length [mm] | 254 / 508 / 762 |
| Dimensions - Inside diameter [mm] |
30 |
| Dimensions - Outside diameter [mm] |
65 |
| Temperature | under 80°C |
| Max. Pressure [MPa] | 0.4 (30°C) |
Filter medium made by mold-processing granular activated carbon ROCARBO® Series YA
- Organic substances reduced
- Activated carbon
- General purpose product
Model Identification
Features
ROCARBO® Series are cartridge filter media made by molding granular activated carbon in a special method. It is easy to handle and by attaching it to a cartridge filter, it effectively adsorbs organic substances in a solution.
- ROCARBO®I
This is a solid activated carbon filter medium made of 100% activated carbon. - ROCARBO®II
This is a double structured filter medium with strings wound over molded activated carbon which filters and adsorbs simultaneously and effectively. -
ROCARBO®III
This is a filter medium made by molding porous granular activated carbon that can be used for alkaline solutions in a special method.
Applications
- Removal of organic substances and suspended particles in industrial water and rinse water
- Adsorption removal of organic impurity in copper sulfate plating solution
- Adsorption removal of organic impurity in nickel plating solution
- Pretreatment in water purifying process
- Pretreatment for ion exchanger
- Purification and deodorization of pools and baths
- Removal of organic substances and suspended particles in wastewater
- Decolorization and deodorization of various solutions
Iodine adsorption property (breakthrough curve)
Specifications
| Name | ROCARBO®I | ROCARBO®II | ROCARBO®III |
|---|---|---|---|
| Materials - Filter media | Activated carbon | Activated carbon + Wound | Activated carbon + Non-woven fabric |
| Materials - Core | PP | PP | PP |
| Materials - End cap | EPDM | None | EPDM |
| Nominal filtration clarity [μm] | — | 10～20 | — |
| Weight of activated carbon (10inch) [g] | 230 | 140 | 200 |
| Dimensions - Length [inch] | 10/20 | 10/20 | 10/20/30 |
| Dimensions - Inside diameter [mm] |
26 | 26 | 26 |
| Dimensions - Outside diameter [mm] |
63 | 63 | 63 |
| Temperature | under 60°C | under 60°C | under 65°C |
| Max. Pressure [MPa] | 0.25 (30°C) | 0.25 (30°C) | 0.25 (30°C) |
| Applicable pH range | 1～8 | 1～8 | 1～13 |
Filter medium filled with granular activated carbon C-DASH filter medium SCT7
- Organic substances reduced
- Activated carbon
- General purpose product
Features
C-DASH filter medium is an activated carbon filter medium filled with granular activated carbon made from coconut shells. The activated carbon filled inside can be replaced by the customer and is economical, and the adoption of dedicated polyethylene case avoids activated carbon particulates from leaking, allowing stable removal of organic substances in the solution.
Applications
- Removal of organic substances in industrial water and rinse water
- Removal of organic impurity in plating solution
- Pretreatment in water purifying process
- Pretreatment for ion exchanger
- Removal of organic substances in wastewater
- Decolorization and deodorization of various solutions
Specifications
| Materials - Filter media | Granular activated carbon + PE |
|---|---|
| Materials - Core | PE |
| Materials - End cap | PVC |
| Weight of activated carbon [g] | 190 |
| Dimensions - Length [mm] | 250 |
| Dimensions - Outside diameter [mm] |
68 |

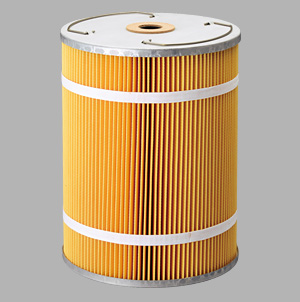

Filter medium made by mold-processing filter paper in a pleated shape PCF filter medium
- Long-life
- Compact
- Filter Model FU
Features
PCF filter medium is a filter medium made by molding resin-processed filter paper in a pleated shape. Though the filter medium is compact in size, its filtration area is large and it can be used to filter various solutions from small to large volume, allowing long-life and stable filtration.
Applications
- Cutting oil, rinse water, hydraulic oil, turbine oil, transformer oil
- Industrial water, cooling water, fresh water, wastewater
Specifications
| Materials - Cover/Core | SS400 |
|---|---|
| Materials - Packing | Hikers cork |
| Materials - Filter paper | Resin impregnated cellulose |
| Nominal filtration clarity [μm] | 1 / 3 / 5 / 10 |
| Dimensions - Length [mm] | 349 / 509 |
| Dimensions - Outside diameter [mm] |
260 |
Usable repeatedly due to instantaneous back-pressure washing system while maintaining high filtration clarity Tubular T filter medium RT
- Long-life
- Backwash reuse
- Filter Model EAX (type T)
Model Identification
Features
High-clarity and stable filtration is realized due to originally developed special structure tubular filter medium. Due to instantaneous back-pressure washing system, an outstanding effect is obtained with long filtration life, and the running and wasting costs are significantly reduced.
It can also be applied to pre-coated filtration and non-filter aid filtration. This is a filter medium exclusively for EcoAce®PLUS type T with filtration area of 1m2 to 3m2.
Applications
- Plating solutions, acid/alkaline solutions, chemicals
- Industrial water, rinse water, wastewater
- Griding fluid, paint, solvent, cutting oil
- Water for bath and pool
Specifications
| Materials - T filter medium |
PP+PE |
|---|---|
| Materials - Intermediate plate |
PP/PVC |
| Materials - Screws | SUS |
| Dimensions - Length [mm] | 525/775 |
| Dimensions - Outside diameter [mm] |
21 |
