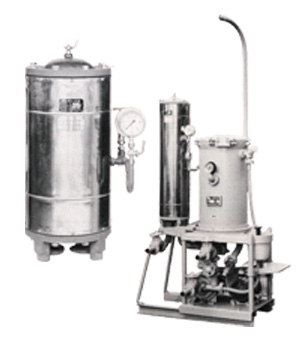

NEKKO Heat exchanger
NEKKO is a heat exchanging filter made by integrating a heat exchanger and a filter into a single unit, achieving simultaneous control of heat and solution. The structure of the heat exchanger must be compliant with operating conditions such as amount of heat transferred, flow volume, flow speed, soiling, temperature and pressure, and be easily operated/maintained. "NEKKO" fulfills all these requirements, and is used effectively in a wide variety of fields.
Features
- Integration of this heat exchanger with a filter allows simultaneous control of solution and heat.
- The mechanism is resistant to rapid changes in steam pressure and is strong against heat impacts.
- The right corrosion-resistant materials are used in the right places, so there is no need to worry about solution leaks.
- Small installation space increases flexibility of use, offering even greater convenience.
Technical specifications
Model | HG5 | HG8 | HG10 | HG15 |
---|---|---|---|---|
Heat exchanger tube - Area | 0.50m2 | 0.75m2 | 1.00m2 | 1.50m2 |
Heat exchanger tube - Number of tubes | 26 | 26 | 26 | 26 |
Pressure | 0.1MPa | 0.1MPa | 0.1MPa | 0.1MPa |
Weight | 41kg | 48kg | 52kg | 58kg |
L | 630mm | 800mm | 960mm | 1,230mm |
U - When heating Inlet | 1 inch | 1 1/4 inch | 1 1/2 inch | 1 1/2 inch |
U - When heating Outlet | 3/4 inch | 1 inch | 1 1/4 inch | 1 1/4 inch |
U - When cooling Inlet/Outlet | 1 1/4 inch | 1 1/4 inch | 1 1/2 inch | 1 1/2 inch |
Ø | 275mm | 275mm | 275mm | 275mm |
