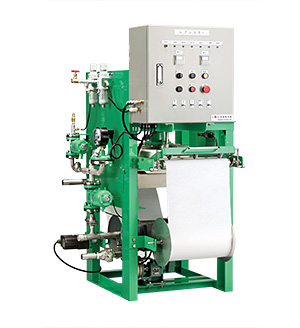

Compact PF Automatic Dewatering Filter
Improve efficiency in your small-scale continuous production line by using the functions of a filter unit and dewatering unit in one compact unit
Features
- Allows economical treatment as a result of its reliable design
Provides low-cost treatment of large volumes of sludge discharged from several small-scale continuous production lines - Requires no need for additional manpower during operation by continuous automation
Offers fully automatic filtration, dewatering and sludge discharge in a cyclic process - Allows easy replacement of filter paper due to its simple construction
- Offers easy maintenance because of its compact and simple design
Applications
- For the recovery and treatment of accumulated sludge from machine, paint and forging industries
- For copper recovery from surface cleaning / conditioning and polishing processes in the electronics industries
- For other filtration and dewatering treatment applications
Technical Specifications
| Model | PF1S |
|---|---|
| Filter area [m2] | 0.1 |
| Filtration capacity [m3/h] | ～2 |
| Inlet / Outlet pipe size [mm] | 25 |
| Filter paper width [mm] | 375 |
| Weight [kg] | 385 |
| Air requirement | 300NL/min×0.5MPa |
| Motor | AC200V 0.75kW 3Ø4P |
| Accessories | Filter paper Gland packing Gland packing remover |
* The filtration capacity depends on the raw water quality.
Dimensions
