Filter Media : Filter cloth system
Applicable for filter cloth filter medium compatible with various plating solutions, which can also be used in pre-coated filtration solutionsG tube filter medium RG / Normal line filter medium RE
- Stable clarity
- Wash reuse
- Filter Model EAX/F Series/Model SYL

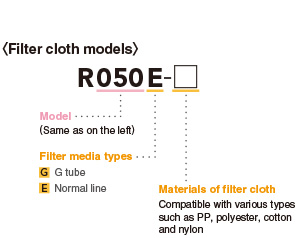

Model Identification
Features : G tube filter medium RG
G tube filter medium is a disk-shaped filter cloth filter medium which is developed to increase filtration area and facilitate wash restoration. Depending on the model, the filtration area can be secured from 0.05m2 to 0.3m2, and it can be used for small plating baths. Not only the filtration clarity but also its operability are excellent, and it is suitable for filtration of various plating solutions and chemicals for decoration, industry, and rust prevention. The filtration cloth used can be removed and washed for repeated use, making it very economical.
Features : Normal line filter medium RE
This is a SANSHIN original filter medium with filter cloths attached to normal line leaf filter media arranged radially. The number of leaf filter media varies from 16 to 36 depending on the filtration area. Pre-coated filters with normal line filter media have large filtration area per installation area. Depending on the model, the filtration area can be secured from 0.45m2 to 50m2, and it can be used for small to large plating baths. Not only the filtration clarity but also its operability and cost performance are excellent, and it is suitable for filtration of various plating solutions and chemicals for decoration, industry, and rust prevention. The filtration cloth used can be removed and washed for repeated use, making it very economical. In large-scale models, the filter cloths can be washed by bubbling, shower operation, etc. without removing.
Applications G tube filter medium RG
- Circulating filtration of various plating solutions
- Circulating filtration and replacing filtration of various pretreatment and post-treatment solutions
- Purification of chemicals
Applications Normal line filter medium RE
- Circulating filtration of various plating solutions
- Circulating filtration and replacing filtration of various pretreatment and post-treatment solutions
- Purification of chemicals
Specifications G tube filter medium RG
| Materials - Central pipe | PVC |
|---|---|
| Materials - Filter plate | PE |
| Filter area [m2] | 0.05 - 0.3 |
| Temperature | under 55°C |
Specifications Normal line filter medium RE
| Materials - Central pipe | SS/SUS/PVC/HT-PVC/Ti |
|---|---|
| Materials - Filter plate | SS/SUS/PP/Ti |
| Filter area [m2] | 0.45 - 50 |
| Temperature | under 80°C |
Filter cloth filter medium compatible with large volume solutions, which adopts instantaneous back-pressure washing systemCylinder filter medium RI
- Stable clarity
- Backwash reuse
- Filter Model FDR/FD/FDS
Model Identification
Features : FDR filter medium / FD filter medium
This is a cylinder filter medium exclusively for Candle Type Filter Model FDR/FD. This cylinder filter medium is made of plastics or metals which are excellent in chemical resistance, and by attaching replaceable filter cloths made of polypropylene and such, chemical resistance, filtration clarity, etc. can be adjusted. The filter cloths used can be washed by instantaneous back-pressure washing and used repeatedly without removing from the filter. The filtration area can be selected from 2.4m2 to 51.3m2 according to the number of equipped filter media, and it is suitable for filtration of various chemicals, plating solutions, and coolant solutions.
Features : Sepaner filter medium
This is a cylinder filter medium exclusively for Candle Type Filter Model FDS. This cylinder filter medium is a filter cloth filter medium made by special lamination of PTFE membrane with excellent resistance against chemicals on the surface of non-woven fabric made of polypropylene. Filters equipped with this filter medium continuously repeat filtration and backwash, concentrating collected cake at the bottom of the filter. Due to PTFE film on the surface of non-woven fabric, very high filtrate clarity can be obtained without using filter aids, and it is suitable for recovering cake from dilute solutions. The filtration area can be selected from 2.4m2 to 51.3m2 according to the number of equipped filter media, and it is suitable for filtration of various chemicals and plating solutions.
Applications FDR filter medium / FD filter medium
- Circulating filtration of sheet metal plating solutions
- Dead end filtration of chemical conversion coating solutions
- Filtration of coolant solutions
- Filter purification of chemicals
Applications Sepaner filter medium
- Purification of chemical solutions
- Cake recovery from chemical solutions
Specifications FDR filter medium
| Materials - Filter plate | PP |
|---|---|
| Materials - Core | HT-PVC |
| Dimensions - Length [mm] | 880 |
| Dimensions - Outside diameter [mm] | 38 |
Specifications Sepaner filter medium
| Materials - Metal fittings | HT-PVC |
|---|---|
| Materials - Filter cloth | PP/PTFE |
| Dimensions - Length [mm] | 1000/1250/1500 |
| Dimensions - Outside diameter [mm] | 71 |
Specifications FD filter medium
| Materials - Filter plate | Engineering plastic/SS/SUS |
|---|---|
| Materials - Core | HT-PVC/SS/SUS |
| Dimensions - Length [mm] | 1000/1250/1500 |
| Dimensions - Outside diameter [mm] | 65 |
Compatible models FDR filter medium / FD filter medium
- Model FDR
- Model FD
